PG-5G

ft232rl usb rs232 cable with mini din 8p male for kenwood pg 5g pg 5h

ftdi usb serial adapter cable

usb rs232 to mini din8p male

Application #1:  Kenwood PG-5G PG-5H interphone radio program frequencies

Replace the old DB9 RS232 to mini DIN 8p cable

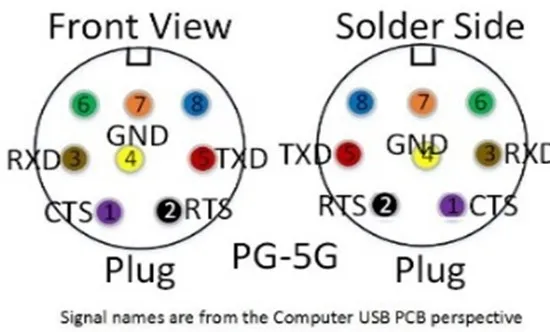

The standard pinout for kenwood radio(TM-D710, TM-D710A, TM-D710E, TM-V71, TM-V71A, TM-V71E, RC-D710)

 as following:

QQ20170323101102

$_57

Compatible with TM-D710, TM-D710A, TM-D710E, TM-V71, TM-V71A, TM-V71E, RC-D710



Application #2: communication signal from your control system to your NEC plasma or projector

The pinout: 7-RX 1-TX  4-GND

6FT DB9 FEMALE TO 8-PIN MINI DIN SERIAL RS232 MALE ADAPTER CABLE

Sends the communication signal from your control system to your NEC plasma or projector
This cable enables communication from an AMX®, Crestron®, or Extron® control system; communication from a PC by using the NEC PC control utility for basic projector control; communication from a PC by using the NEC geometric correction tool for adjusting a projector to display an image on a cylindrical, spherical or corner screen; communication from a PC by using the NEC image express utility to send images to the projector for presentations as well as basic projector control, projector lamp and error status or asset management. Flexible PVC jacket; nickel-plated connectors; rugged connector hoods; 28 AWG conductors.
This cable will work for the following NEC products with an 8-pin control port:• NT410/510/1000/1100
• LT180
• LT30/35
• LT240/260/245/265
• NP40/50/60
• VT37/47/470/570/575/670/676/48/480/580/49/490/590/595/695/700
• WT600/610

This cable is also opening for customized pinout on your message.

The customers DIY will not soldering the wires on the conector, you can soldering the wires for testing.

It is for other device(different device has different pinout)
